Hedge Clipper

OperatOr's Manual

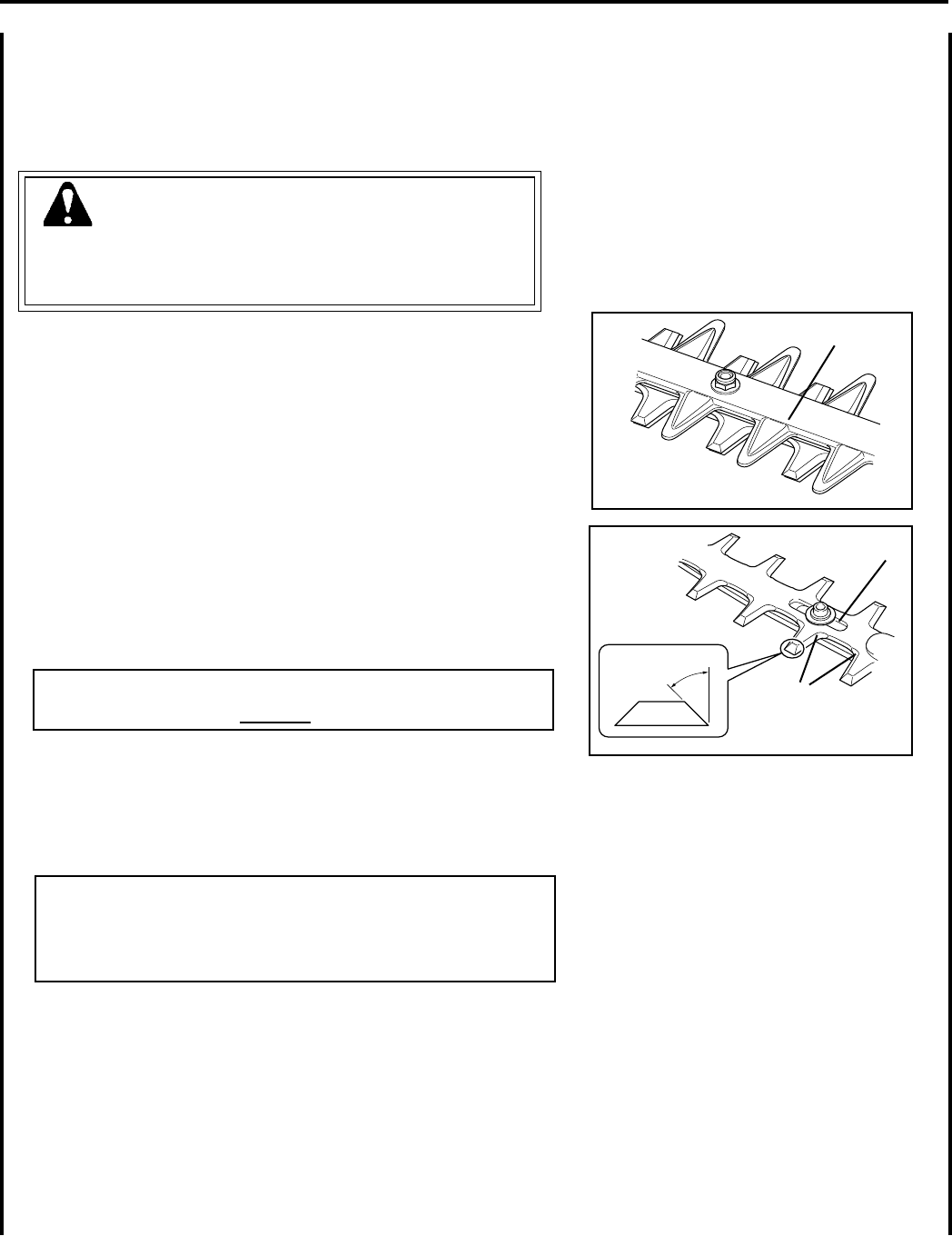

sharpenInG blades

Level 2.

Parts required: None

WARNING

Hedge Clipper blades are very sharp. Touching them may lead to

severe personal injury. Avoid touching blades whenever possible,

and always wear gloves to protect hands.

1. Move stop switch to stop position.

2. Disconnect spark plug wire.

3. Remove blade guard (A) (see “Blade Guard Remove/Install instruc-

tions”).

4. Slide blades to allow le clearance using slots (B) on bottom of

blade. Do not pry against cutting edges.

5. File each edge carefully. Follow the original shape of the blade.

IMPORTANT

If a power grinder is used DO NOT allow blade to over heat.

6mm (.25 in.) Radius

45º

6. Install blade guard (see “Blade Guard Remove/Install instructions”).

7. Lubricate blades (see “Lubrication instructions”).

IMPORTANT

Blades should only be removed and reinstalled by an Authorized

ECHO Servicing Dealer, otherwise premature wear or internal

damage may occur.
