Hedge Clipper

OperatOr's Manual

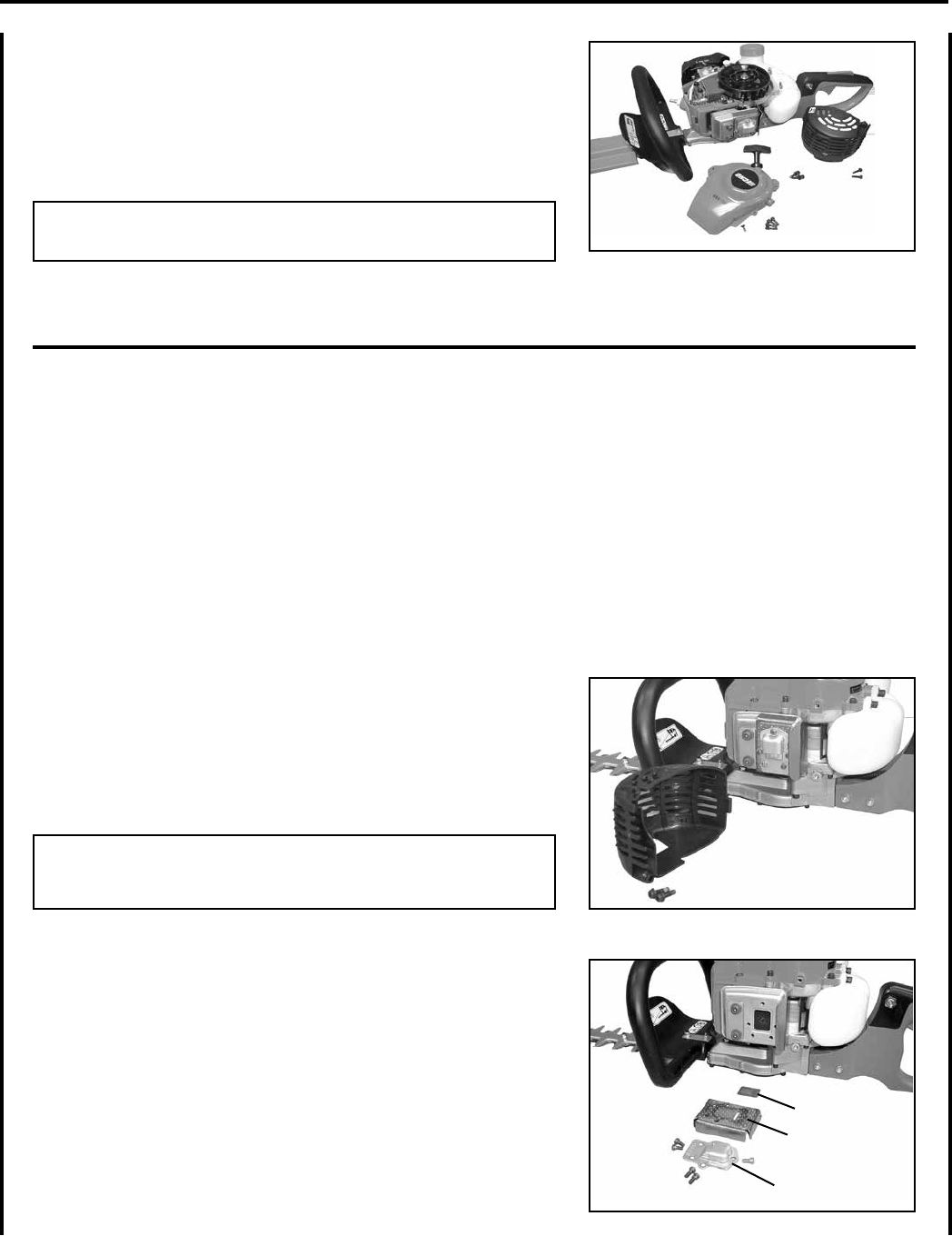

1. Remove spark plug lead.

2. Remove mufer cover.

3. Remove starter cover.

4. Use brush to remove dirt from cylinder ns.

IMPORTANT

DO NOT use a metal scraper to remove dirt from the cylinder ns.

5. Assemble components in reverse order.

exhaust system

Spark Arrestor Screen

Level 2.

Parts required: Screen, Gasket

1. Remove spark plug lead from spark plug, and remove engine or

mufer cover.

2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from

entering cylinder.

3. Remove exhaust guide (A), gasket (B), and screen (C) from mufer

body.

4. Clean carbon deposits from mufer components.

NOTE

When cleaning carbon deposits, be careful not to damage the cata-

lytic element inside mufer.

5. Replace screen if it is cracked, plugged or has holes burned through.

6. Install engine cover or mufer cover and attach spark plug lead.
